Technical Data
OW4002 4.2KW Water/Oil Cooler
The OW4002 oil cooler is a recirculating liquid to air heat exchanger that offers dependable, compact performance by removing large amounts of heat from a liquid circuit. Oil is recirculated using a high-pressure pump to assure maximum flow rate. The OW4002 uses facility water as a hot side heat dissipation mechanism, which increases the cooling capacity while maintaining form factor.
| Dimensions (mm) W x H x D | 551 x 621 x 350mm |
|---|---|
| Weight (without coolant) | 45kg |
| Coolant Capacity | 4200W/23L |
| Coolant Type | Oil |
| Performance Data | |
| Cooling Capacity @ temperature difference of 20° | 4.2kW |
| Flow Rate | >17.0 lpm @ 3.5 bar |
| Frequency | 50/60Hz |
| Input Voltage | 230VAC |
| Noise Level @ 1m distance | <60 db(A) |
| Environmental Specifications | |
| Operating Temperature | +10°C – +40°C |
| Storage Temperature | -40°C – +70°C (empty) |
| Air Humidity | 20% – 80% (non condensing) |
| Settings | |
| Maximum forward pressure | 9 bar ± 0.5 bar |
| Flow switch open | 14l/pm |
| Temperature switch open | 55°C |

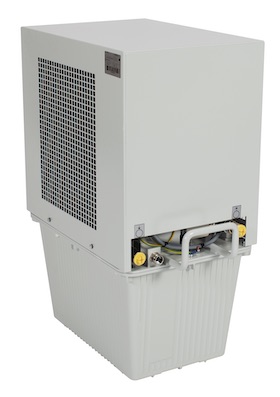

OL4503 4.5KW Air/Oil Cooler
The OL4503 oil cooler is a recirculating liquid to air heat exchanger that offers dependable, compact performance by removing large amounts of heat from a liquid circuit. Oil is recirculated using a high-pressure pump to assure maximum flow rate. Heat from oil is absorbed by a heat exchanger and dissipated into the ambient environment by use of a brand name fan.
| Dimensions (mm) W x H x D | 650 x 750 x 350mm |
|---|---|
| Weight (without coolant) | 54.5kg |
| Coolant Capacity | 4500W/23L |
| Coolant Type | Oil |
| Performance Data | |
| Cooling Capacity @ temperature difference of 22° | 4.5kW |
| Flow Rate | >22.0 lpm @ 3.5 bar |
| Frequency | 50/60Hz |
| Input Voltage | 230VAC |
| Noise Level @ 1m distance | <60 db(A) |
| Environmental Specifications | |
| Operating Temperature | +10°C – +40°C |
| Storage Temperature | -25°C – +70°C (empty) |
| Air Humidity | 20% – 90% (non condensing) |
| Settings | |
| Maximum forward pressure | 9 bar, + 0.5 -0.2 bar |
| Flow switch open | 14l/pm |
| Temperature switch open | 55°C |
